Front Door Side Impact Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required. For correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: Removal steps in this procedure may contain installation details.
  1. Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering .
  2. Remove the front door trim panel. REFER to: Front Door Trim Panel .

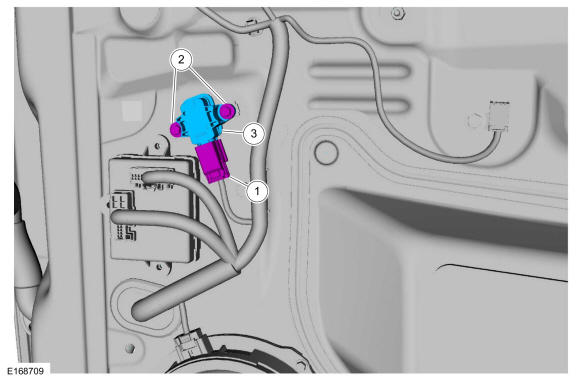

    1. Disconnect the electrical connector.
    2. Remove the 2 bolts.

      Torque: 19 lb.in (2.2 Nm)

    3. Remove the front door side impact sensor.
GFD230671Courtesy of FORD MOTOR COMPANY
