Driver Knee Airbag: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required. For correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering column shrouds. REFER to: Steering Column Shrouds .
Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering .
1. Remove the pin-type retainer.
2. Remove the 2 screws.
3. Disconnect the electrical connector and remove the hush panel.
Courtesy of FORD MOTOR COMPANY

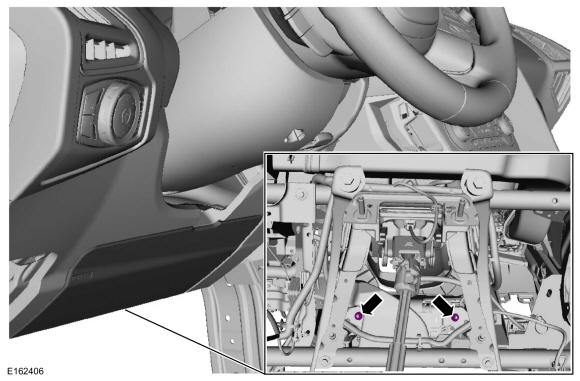

Remove the 2 nuts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

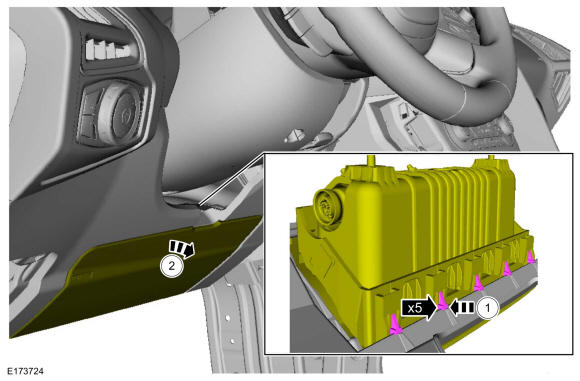

1. Through the opening, push the 5 tabs down.
2. Pivot the driver knee airbag down and separate it from the knee bolster.
Courtesy of FORD MOTOR COMPANY

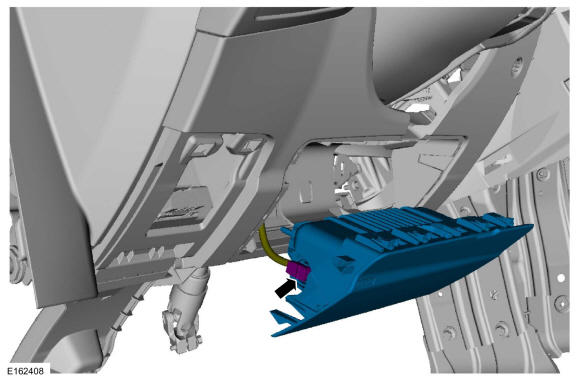

Disconnect the electrical connector and remove the driver knee airbag.

Courtesy of FORD MOTOR COMPANY
