Driver Airbag: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System deployment. Make sure the restraint system is depowered be. Fore reconnecting the component. Refer to Supplemental Restraint System (SRS) Depowering . Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

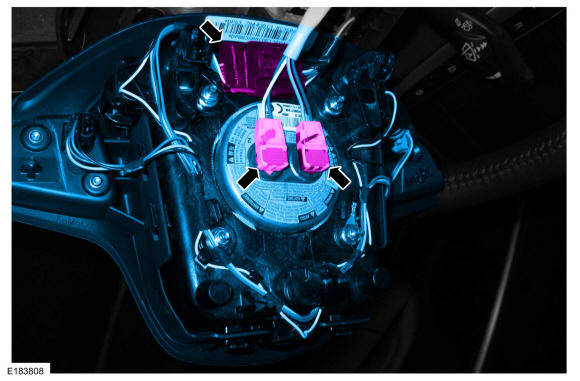

  1. Connect the 3 driver airbag electrical connectors.
    GFD230663Courtesy of FORD MOTOR COMPANY

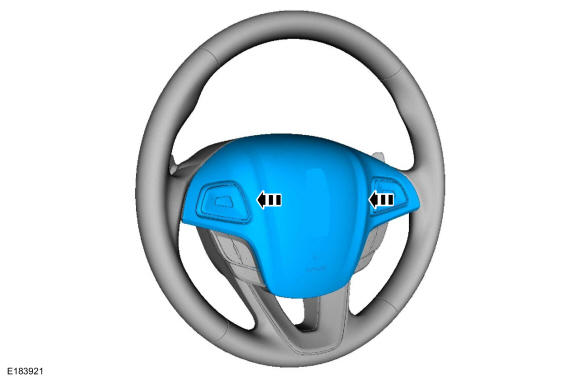

  2. Align the driver airbag to the steering wheel and push in, engaging the driver airbag retainers to the spring clips.
    GFD230664Courtesy of FORD MOTOR COMPANY
  3. Repower the SRS. REFER to: Supplemental Restraint System (SRS) Repowering .
