Removal And Installation: Clockspring: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required. For correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the following items:

    1. Refer to: Steering Wheel .
    2. Refer to: Steering Column Shrouds .

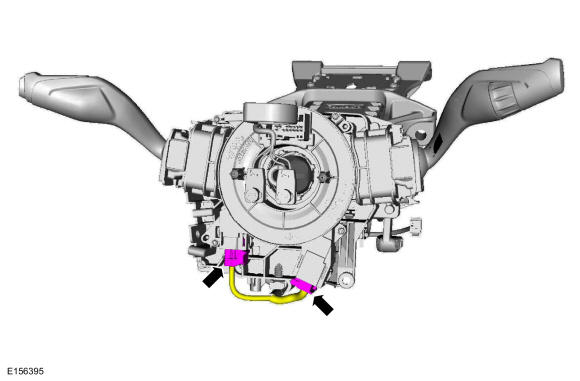

  2. Disconnect the electrical connectors.
    GFD230654Courtesy of FORD MOTOR COMPANY

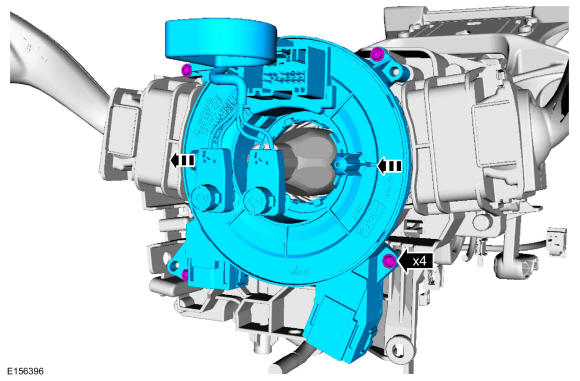

  3. Remove the 4 screws and the clockspring.
GFD230655Courtesy of FORD MOTOR COMPANY
