Section 2281 (Supplemental Restraint System - Description And Operation, Diagnosis And Testing - DTC And Symptom Indexes)
>>
Description And Operation
>>
Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - System Operation and Component Description
>>
System Operation
>>

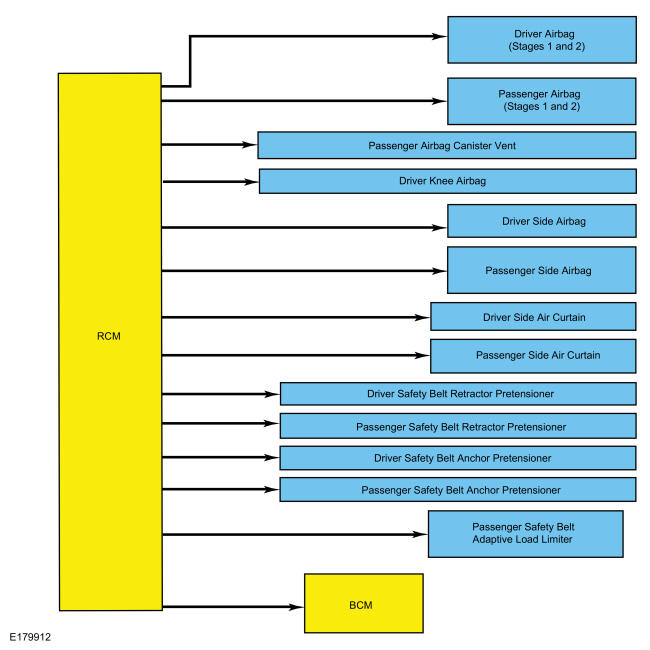

System Diagram - Supplemental Restraint System (SRS)

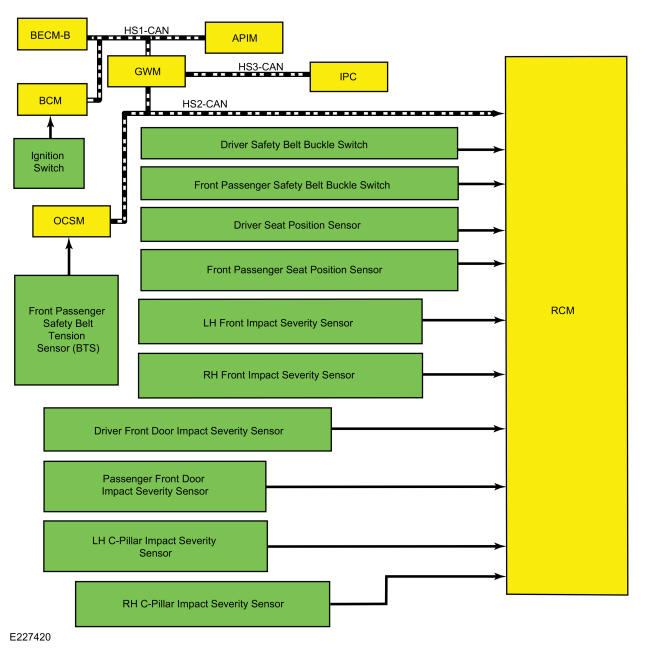

System Diagram - Supplemental Restraint System (SRS)
WARNING:
This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
