Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

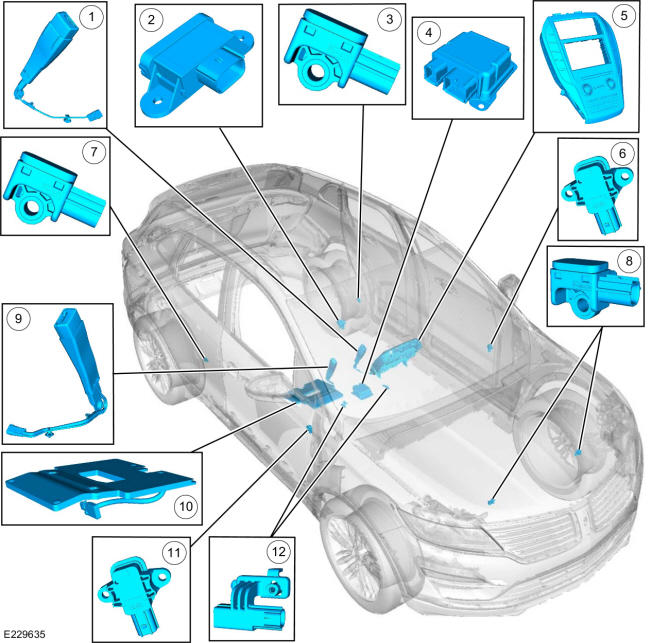

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Driver safety belt buckle (includes buckle switch) |
| 2 |
BECMB |
| 3 |
LH C-pillar side impact sensor |
| 4 |
RCM |
| 5 |
FCIM (includes PAD indicator) |
| 6 |
Driver front door side impact sensor |
| 7 |
RH C-pillar side impact sensor |
| 8 |
Front impact severity sensors |
| 9 |
Front passenger safety belt buckle (includes buckle switch and Belt Tension Sensor (BTS)) |
| 10 |
OCSM (includes OCS sensor and gel-filled bladder) |
| 11 |
Passenger front door side impact sensor |
| 12 |
Seat position sensors |

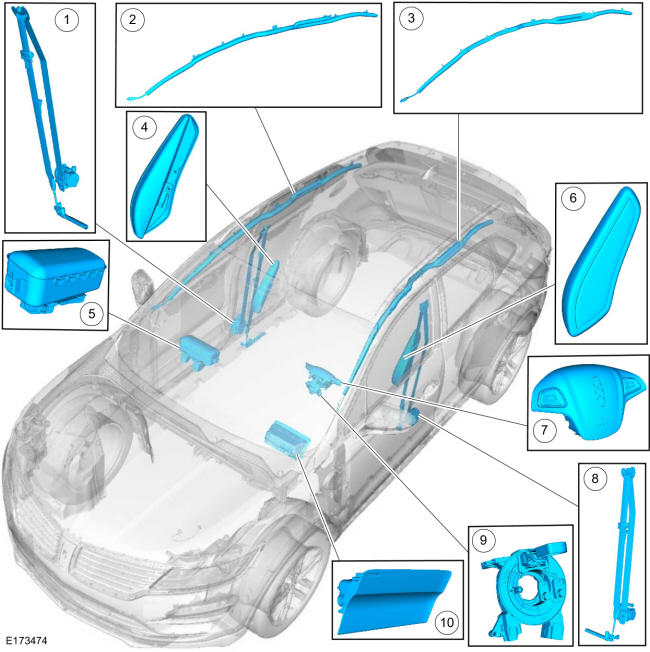

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front passenger safety belt retractor (includes retractor pretensioner, adaptive load limiter and anchor pretensioner) |
| 2 |
RH side air curtain |
| 3 |
LH side air curtain |
| 4 |
Passenger side airbag |
| 5 |
Passenger airbag |
| 6 |
Driver side airbag |
| 7 |
Driver airbag |
| 8 |
Driver safety belt retractor (includes retractor pretensioner and anchor pretensioner) |
| 9 |
Clockspring |
| 10 |
Driver knee airbag |
