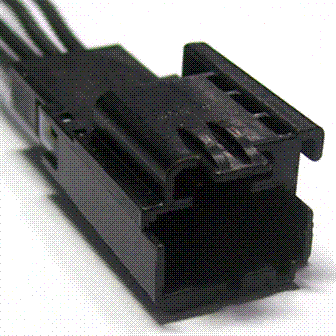

Connector End View (C457) - LIFTGATE LATCH
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C457
Description
LIFTGATE LATCH
Color
Harness
14086
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL10 (GN-WH) | 18 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE | |
| 2 | GD150 (BK-WH) | 18 | GROUND - PILLAR D LEFT # 2ND POINT (OBSOLETE) | |
| 3 | CPR50 (BN-BU) | 20 | SWITCH - POWER LIFTGATE MODULE HOME POSITION | |
| 4 | CPL58 (GY-OG) | 20 | SWITCH - LIFTGATE/DECKLID # GLASS AJAR |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1041 |
Service Part Number: 9U2Z-14S411-AJA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Switch - Deck Lid / Lift Gate Ajar |
