Connector End View (C4326C) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C4326C
Description
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME22 (VT-GN) | 20 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO + | |
| 2 | VME01 (GN-VT) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | SBP05 (GY-RD) | 14 | FUSE - 5 OR CIRCUIT BREAKER | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME22 (GN-WH) | 20 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO - | |
| 10 | RME01 (GY) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | GD114 (BK-BU) | 14 | GROUND - CROSS CAR BEAM (OBSOLETE) | |
| 16 | * | * | Not Used |

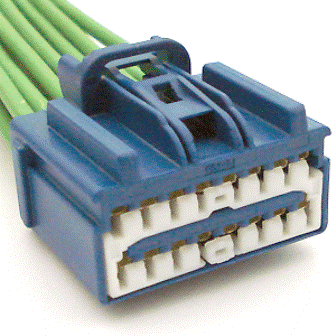

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-959 |
Service Part Number: 3U2Z-14S411-BDAB Gauge: 14 Pin material: Silver Cavities: 16 Vehicle Uses Radio - Amplifier |
