Connector End View (C2371A) - TRANSFER CASE CONTROL MODULE (TCCM)
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C2371A
Description
TRANSFER CASE CONTROL MODULE (TCCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CCF14 (GN-OG) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP) | |
| 2 | CCF15 (BN-YE) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP) | |
| 3 | CCF16 (VT-GN) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP) | |
| 4 | CCF17 (WH-OG) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP) | |
| 5 | RFC09 (BN-WH) | 18 | #N/A | |
| 6 | CCF05 (BN-BU) | 4 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTEGRATED WHEEL ENDS (4WDIWE) | |
| 7 | CBP37 (WH) | 20 | FUSE - 37 OR CIRCUIT BREAKER | |
| 8 | * | * | Not Used | |
| 9 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 10 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | RCF13 (WH-BN) | 20 | SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) | |
| 15 | * | * | Not Used | |
| 16 | CCF13 (WH-BU) | 20 | SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used |

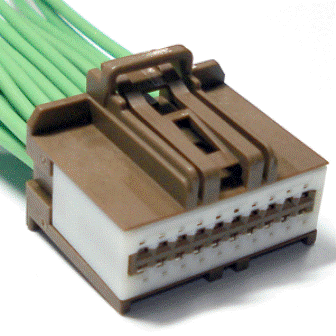

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1040 |
Service Part Number: 9U2Z-14S411-AHA Gauge: 18 Pin material: Silver Cavities: 20 Vehicle Uses Module - Transfer Case Shift Control |
