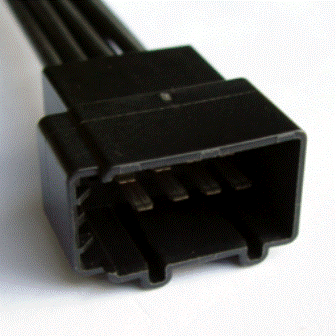

Connector End View (C935) - INLINE
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Inline:C935
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 13A409
FEMALE
Harness 14086
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD150 (BK-WH) | 10 | 14086 |
| 1 | GD150 (BK-WH) | 6 | 13A409 |
| 2 | GD149 (BK-GY) | 14 | 13A409 |
| 2 | GD149 (BK-GY) | 14 | 14086 |
| 3 | * | * | |
| 4 | CPR50 (BN-BU) | 20 | |
| 5 | CBP40 (YE-GN) | 18 | |
| 6 | CRD06 (BN-YE) | 10 | 14086 |
| 6 | CRD06 (BN-YE) | 6 | 13A409 |
| 7 | CPL59 (BN-BU) | 16 | 13A409 |
| 7 | CPL59 (BN-BU) | 18 | 14086 |
| 8 | SBB47 (WH-RD) | 10 | 13A409 |
| 8 | SBB47 (WH-RD) | 14 | 14086 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-399 |
Service Part Number: 3U2Z-14S411-DFA Gauge: 12 Pin material: Tin Cavities: 8 Vehicle Uses: Switch - Seat (driver) Switch - Seat (passenger) Switch - Seat Lumbar |
