Connector End View (C286) - SUNLOAD SENSOR
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C286
Description
SUNLOAD SENSOR
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VH417 (YE-OG) | 22 | SENSOR - SUN LOAD # RIGHT | |
| 1 | VH417 (YE-OG) | 20 | SENSOR - SUN LOAD # RIGHT | |
| 2 | VLF14 (BU) | 26 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + | |
| 3 | VH416 (VT-GY) | 26 | SENSOR - SUN LOAD # LEFT | |
| 4 | GD133 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT (OBSOLETE) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1013 |

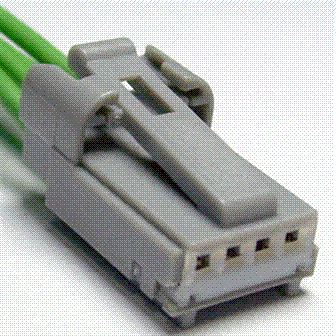

Service Part Number: 9U2Z-14S411-TA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Auto Lamps Sensor - Sunload |
