Connector End View (C256) - PASSENGER AIRBAG MODULE
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C256
Description
PASSENGER AIRBAG MODULE
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR104 (YE-GY) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 + | |
| 2 | RR104 (WH-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 - | |
| 3 | CR103 (GY-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 + | |
| 4 | RR103 (VT-GN) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 - |
| Available Pigtail Kits | |

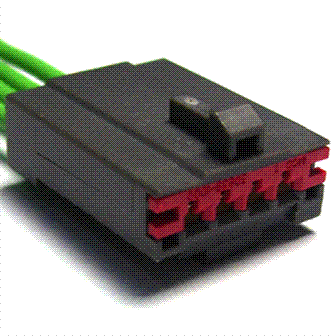

| Pigtail Kit Part Number WPT-1479 |
Service Part Number: GU2Z-14S411-VA Gauge: 16 Pin material: Gold Cavities: 4 Vehicle Uses Airbag - Knee Inflator - Safety Belt Module - Airbag |
