Connector End View (C240A) - AUDIO UNIT
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C240A
Description
AUDIO UNIT
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP29 (GY-RD) | 14 | FUSE - 29 OR CIRCUIT BREAKER | |
| 2 | CME13 (YE-OG) | 20 | CTRL MOD. - POWER ANTENNA MOTOR | |
| 2 | CME13 (YE-OG) | 18 | CTRL MOD. - POWER ANTENNA MOTOR | |
| 2 | CME13 (YE-OG) | 20 | CTRL MOD. - POWER ANTENNA MOTOR | |
| 3 | CDC54 (BU-GY) | 18 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
| 3 | CDC54 (WH-GN) | 18 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME09 (BN-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - | |
| 10 | RME07 (WH-BN) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - | |
| 10 | RME07 (WH-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - | |
| 11 | RME10 (WH-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - | |
| 11 | RME10 (WH-VT) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - | |
| 12 | RME12 (BN-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - | |
| 13 | GD114 (BK-BU) | 14 | GROUND - CROSS CAR BEAM (OBSOLETE) | |
| 14 | VDB13 (BU-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 15 | VDB14 (VT-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | DME07 (*) | 20 | CTRL MOD. - AUDIO # FRONT | |
| 20 | * | * | Not Used | |
| 21 | VME09 (WH-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + | |
| 22 | VME07 (WH) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | |
| 22 | VME07 (WH) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | |
| 23 | VME10 (WH-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | |
| 23 | VME10 (WH-OG) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | |
| 24 | VME12 (BN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1440 |

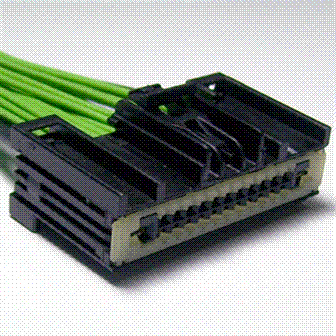

Service Part Number: FU2Z-14S411-ALA Gauge: 14 20 Pin material: Tin & Silver Cavities: 24 Vehicle Uses DVD Player Module - Audio Control Module - Body Control Module Gateway Radio Test Connector - Diagnostic |
