Connector End View (C219) - INLINE
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Inline:C219
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14401
FEMALE
Harness 15K857
| Pin | Circuit | Gauge | Qualifier |
| 1 | LPP06 (YE-BU) | 20 | |
| 2 | * | * | |
| 3 | RPP06 (GN) | 20 | |
| 4 | * | * | |
| 5 | CPP02 (BN) | 14 | |
| 6 | CPP01 (WH-OG) | 14 |

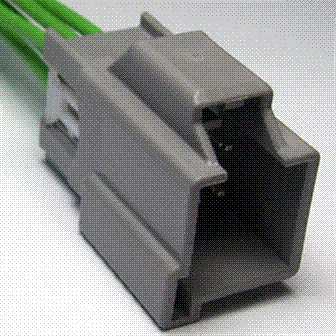

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1299 |
Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Mating Connector WPT-962 Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction |
