Connector End View (C216A) - DRIVER AIR BAG MODULE
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C216A
Description
DRIVER AIR BAG MODULE
Color
GY-YE
Harness
14A664
Base Part #
74043B13
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR101 (WH) | 20 | CTRL MOD. - AIR BAG DRIVER 1 FEED | |
| 2 | RR101 (BU) | 20 | CTRL MOD. - AIR BAG DRIVER 1 RTN |

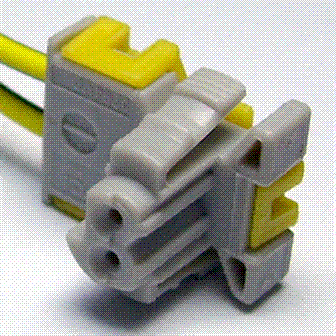

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1223 |
Service Part Number: BU2Z-14S411-BFA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Squib - Airbag (Passenger) |
