Connector End View (C212) - INLINE
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Inline:C212
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14401
FEMALE
Harness 12A581
| Pin | Circuit | Gauge | Qualifier |
| 1 | SBB48 (VT-RD) | 10 | 14401 |
| 1 | SBB48 (VT-RD) | 6 | 12A581 |
| 2 | CAT06 (YE) | 12 | 12A581 |
| 2 | CAT06 (YE) | 12 | |
| 3 | CAT09 (GN) | 12 | 12A581 |
| 3 | CAT09 (GN) | 12 | 14401 |
| 4 | CAT11 (BN) | 12 | 12A581 |
| 4 | CAT11 (BN) | 12 | 14401 |
| 5 | CAT14 (OG) | 10 | |
| 6 | SBB21 (GY-RD) | 10 |

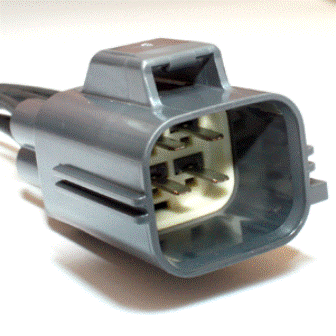

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-163 |
Service Part Number: 1U2Z-14S411-BUA Gauge: 14 Pin material: Tin Cavities: 6 Vehicle Uses: Motor - Windshield Wiper |
