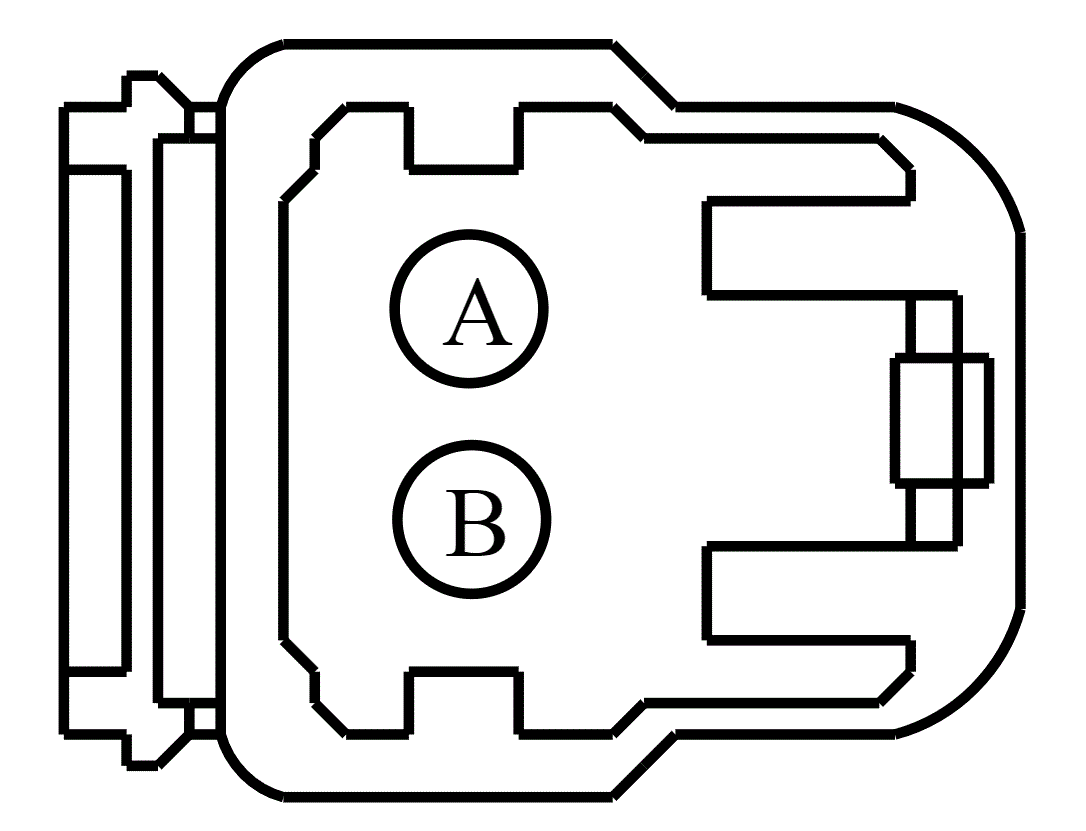

Connector End View (C9221) - MICROPHONE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C9221
Description
MICROPHONE
Color
NA
Harness
14335
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| A |
VMM13 (YE-GN) |
20 |
MICROPHONE - PHONE/VOICE CONTROL |
| B |
DMM13 (BU) |
20 |
MICROPHONE - PHONE/VOICE CONTROL SHIELD |
