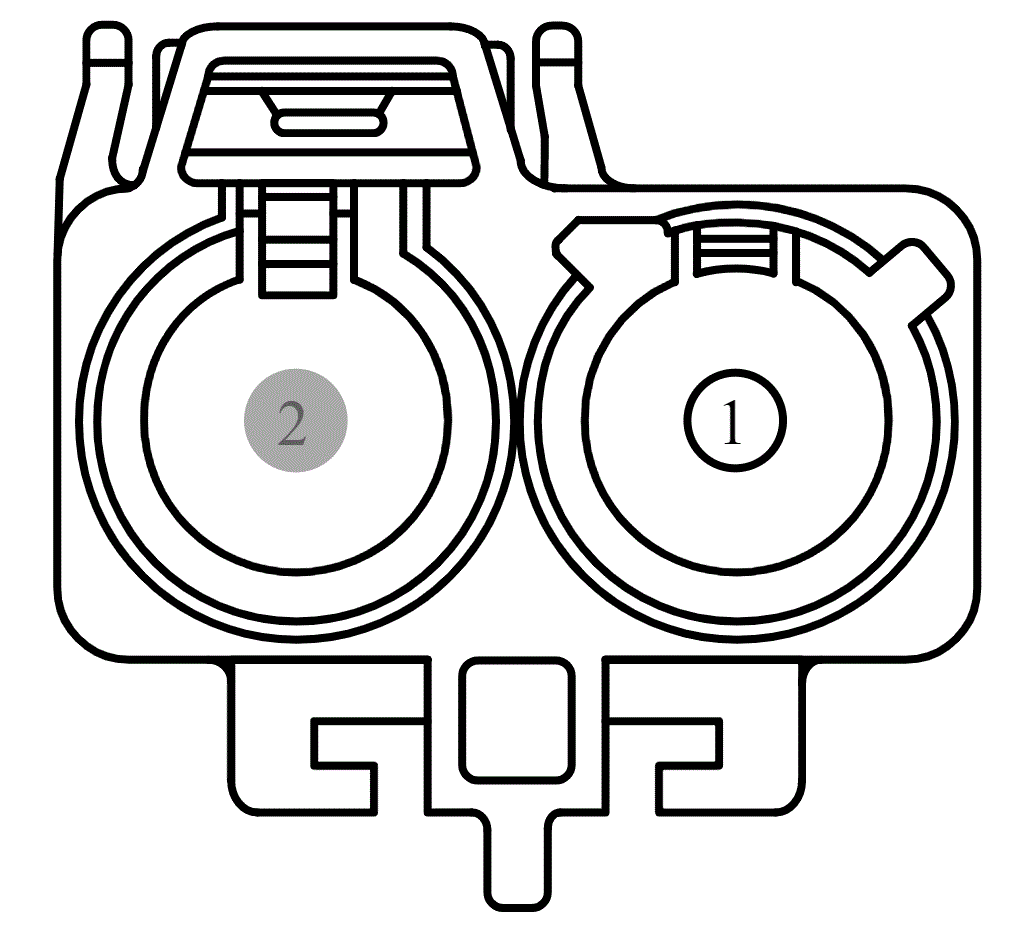

Connector End View (C9051) - ANTENNA
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C9051
Description
ANTENNA
Color
Harness
14014
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CME44 (YE-OG) |
20 |
CTRL MOD. - ANTENNA POWER # REAR WINDOW |
| 2 |
* |
* |
Not Used |
