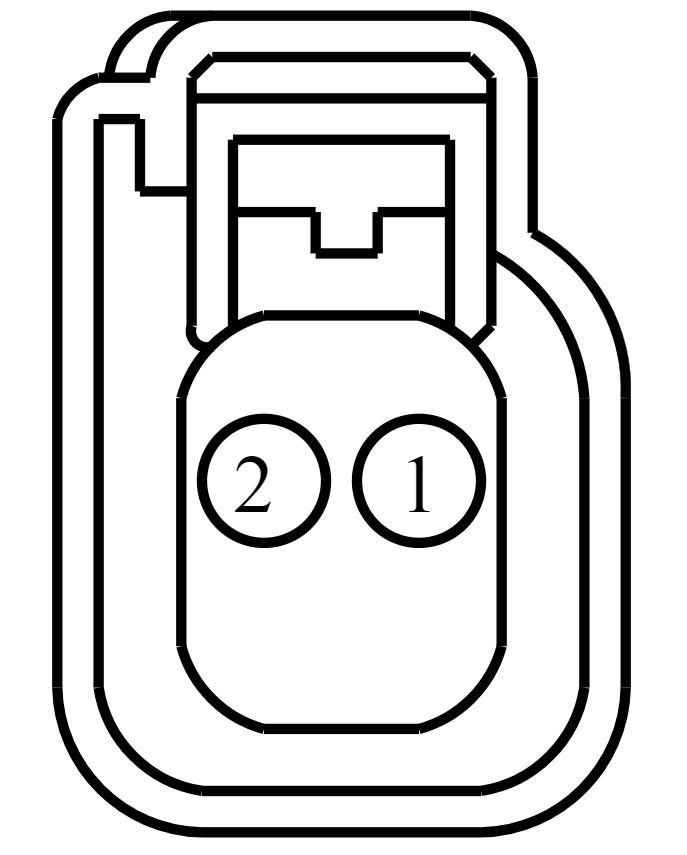

Connector End View (C4378) - PASSIVE START ANTENNA, REAR

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C4378

Description

PASSIVE START ANTENNA, REAR

Color

Harness

14014

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK08 (WH-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR +
2	RPK08 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1052

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JLB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

A/C Compressor Clutch

Actuator - Door Lock

Actuator - Door Lock - LH - Front

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - LH - Sliding Door

Actuator - Door Lock - RH - Front

Actuator - Door Lock - RH - Rear

Actuator - Door Lock - RH - Sliding Door

Actuator - Liftgate Glass

Lamp - Headlamp - Low Beam

Lamp - License

Lamp - Side Marker

Motor - Power Window - LH - Rear

Pump - Fuel (External)

Sensor - Side Impact

Solenoid - Brake Shift Park Interlock

Speaker - Door (front)

Speaker - Door (rear)

Speaker - Front

Speaker - Rear

Speaker - Tweeter - LH - Front

Speaker - Tweeter - LH - Rear

Speaker - Tweeter - RH - Front

Speaker - Tweeter - RH - Rear
