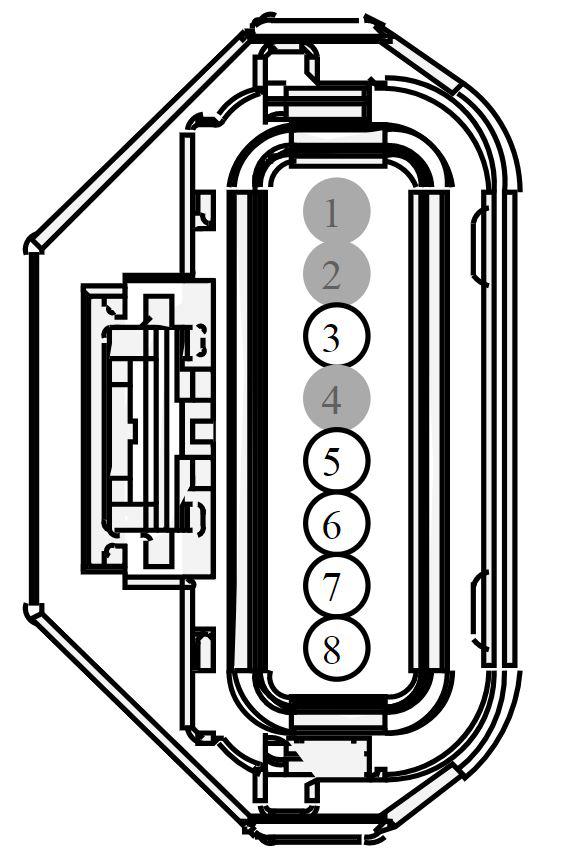

Connector End View (C4370) - SIDE OBSTACLE DETECTION CONTROL MODULE RH (SODR)
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4370
Description
SIDE OBSTACLE DETECTION CONTROL MODULE RH (SODR)
Color
none
Harness
15K868
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | GD152 (BK-BU) | 20 | GROUND - PILLAR D RIGHT # 2ND POINT | |
| 4 | * | * | Not Used | |
| 5 | CBR11 (BU-RD) | 20 | FUSE OR CIRCUIT BREAKER | |
| 6 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 7 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 8 | GD152 (BK-BU) | 20 | GROUND - PILLAR D RIGHT # 2ND POINT |

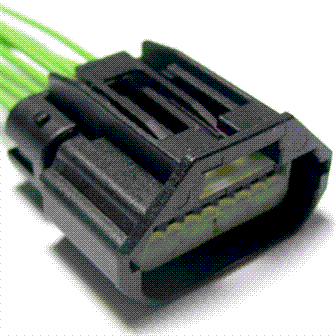

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1434 |
Service Part Number: FU2Z-14S411-ADA Gauge: 20 Pin material: Silver Cavities: 8 Vehicle Uses Sensor - Blind Spot Detection |
| Pigtail Kit Part Number WPT-1545 |
Service Part Number: FU2Z-14S411-ADB Gauge: 20 Pin material: Silver Cavities: 8 Vehicle Uses Module - Audio Control Module - Side Obstacle Detection Sensor - Blind Spot Detection |
