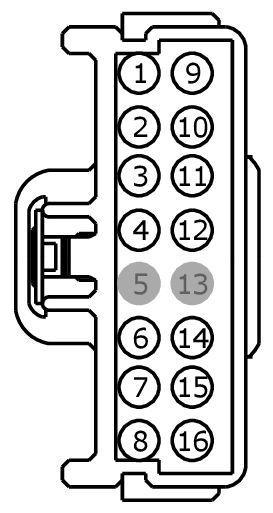

Connector End View (C4326B) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4326B
Description
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Color
GY
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME06 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP | |
| 2 | VME07 (WH) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 3 | VME11 (VT-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER | |
| 4 | VME09 (WH-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR | |
| 5 | * | * | Not Used | |
| 6 | VME10 (WH-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 7 | VME08 (GN-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER | |
| 8 | VME12 (BN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR | |
| 9 | RME06 (GY-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP | |
| 10 | RME07 (WH-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 11 | RME11 (YE-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER | |
| 12 | RME09 (BN-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR | |
| 13 | * | * | Not Used | |
| 14 | RME10 (WH-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 15 | RME08 (GY-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER | |
| 16 | RME12 (BN-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |

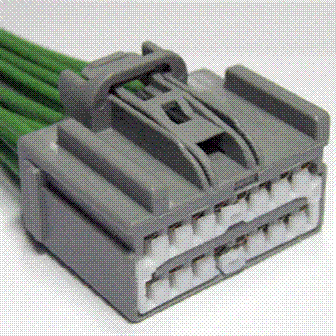

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1145 |
Service Part Number: BU2Z-14S411-GA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Rearview (electrochromatic) Radio - Amplifier |
