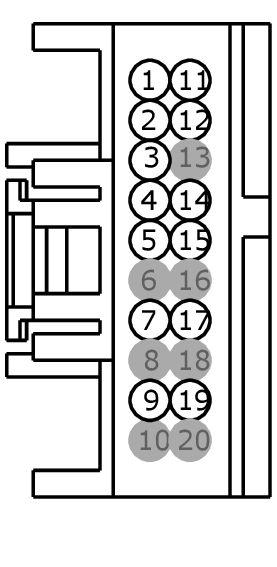

Connector End View (C4326A) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4326A
Description
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Color
GY
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VDB13 (BU-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH | |
| 2 | VME09 (BN-GN) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR | |
| 3 | CME27 (YE-VT) | 22 | CTRL MOD. - AUDIO # ENABLE / CLIPPING | |
| 4 | VME12 (BN-WH) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR | |
| 5 | VME80 (VT-GN) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 6 | * | * | Not Used | |
| 7 | VME07 (WH) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 8 | * | * | Not Used | |
| 9 | VME10 (WH-VT) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 10 | * | * | Not Used | |
| 11 | VDB14 (VT-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW | |
| 12 | RME09 (BN-YE) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR | |
| 13 | * | * | Not Used | |
| 14 | RME12 (BN-BU) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR | |
| 15 | RME80 (BU-GY) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 16 | * | * | Not Used | |
| 17 | RME07 (WH-BN) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 18 | * | * | Not Used | |
| 19 | RME10 (WH-OG) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 20 | * | * | Not Used |

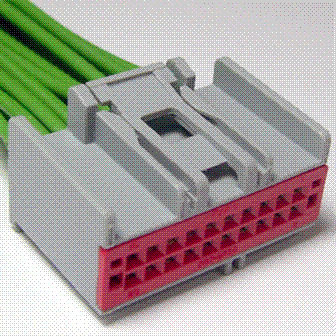

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1199 |
Service Part Number: 3U2Z-14S411-FCB Gauge: 18 Pin material: Silver Cavities: 20 Vehicle Uses Instrument Cluster Module - Seat Memory Monitor - Video/DVD Radio - Amplifier Switch - Heater A/C Blower (Rear) |
