Connector End View (C4223) - LIFTGATE / DECKLID LATCH ASSEMBLY
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4223
Description
LIFTGATE / DECKLID LATCH ASSEMBLY
Color
BK
Harness
17N400
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL17 (BK) | 20 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO UNLOCK | |
| 2 | GD150 (BK-WH) | 20 | GROUND - PILLAR D LEFT # 2ND STUD | |
| 3 | CPL44 (BK) | 20 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 4 | CLN13 (BK) | 20 | SWITCH - TRUNK/CARGO LAMP | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used |

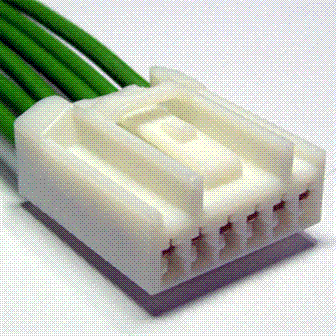

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1119 |
Service Part Number: AU2Z-14S411-AVA Gauge: 16 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid / Lift Gate Ajar |
