Connector End View (C4212) - SUBWOOFER
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4212
Description
SUBWOOFER
Color
GN
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME02 (VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR | |
| 2 | RME02 (YE) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR | |
| 3 | VME02 (GN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR | |
| 4 | RME02 (GY) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR |

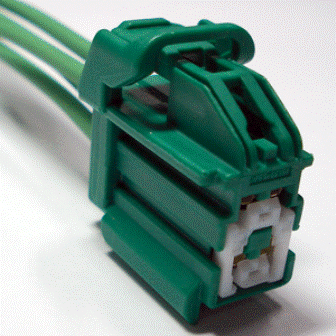

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1016 |
Service Part Number: 3U2Z-14S411-FFB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses Motor - Steering Column Adjust Speaker - Subwoofer Transceiver - Passive Anti-Theft (PATS) |
