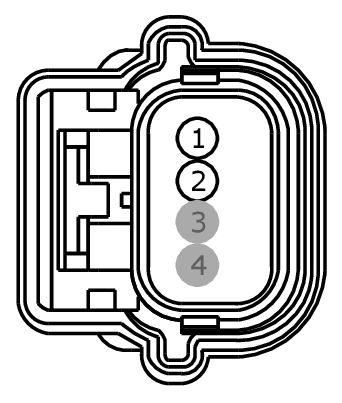

Connector End View (C4082) - INTELLIGENT ACCESS (IA) ANTENNA
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4082
Description
INTELLIGENT ACCESS (IA) ANTENNA
Color
Harness
15K868
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPK07 (VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR | |
| 2 | RPK07 (GN-OG) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1307 |
Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
