Connector End View (C4009) - PARKING AID SENSOR REAR, OUTER LEFT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

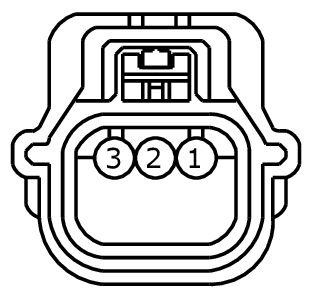

Connector: C4009
Description
PARKING AID SENSOR REAR, OUTER LEFT
Color
BK
Harness
15K868
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LMP07 (BU-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR | |
| 2 | VMP15 (YE-GN) | 20 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | |
| 3 | RMP07 (GN-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1400 |
Service Part Number: 9U2Z-14S411-CC Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
| Pigtail Kit Part Number WPT-1315 |
Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
