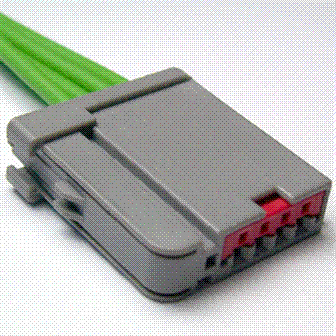

Connector End View (C3700) - MEDIA HUB
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3700
Description
MEDIA HUB
Color
Harness
15K857
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME67 (VT-GY) | 20 | CTRL MOD. - 5V MEDIA POWER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | RME67 (BN-WH) | 20 | MEDIA GROUND |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1239 |
Service Part Number: CU2Z-14S411-AA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Sensor - Compass |
