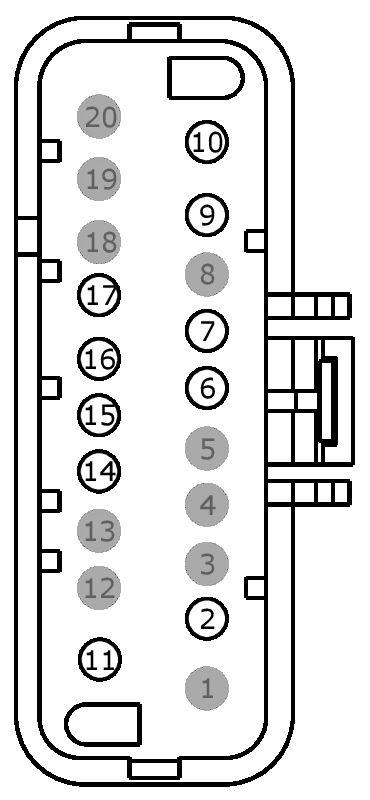

Connector End View (C3387) - SEAT CONTROL SWITCH, DRIVER SIDE FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3387
Description
SEAT CONTROL SWITCH, DRIVER SIDE FRONT
Color
none
Harness
14D231
Base Part #
14489
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CPS18 (BN-GN) | 18 | SWITCH IN - DRIVER SEAT CONTROL | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | CPS19 (GY-VT) | 18 | SWITCH OUT- DRIVER SEAT CONTROL | |
| 7 | CPS29 (WH-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD | |
| 8 | * | * | Not Used | |
| 9 | CPS30 (VT-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD | |
| 10 | CBX05 (VT-RD) | 14 | POWER - SEAT # POWER SEAT SWITCH | |
| 11 | GD903 (BK-WH) | 14 | GROUND - PASSENGER SEAT # SEAT SWITCH | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | CPS28 (GN) | 14 | DRIVER SEAT HORIZONTAL MOTOR BACK | |
| 15 | CPS23 (GN-VT) | 14 | DRIVER SEAT HORIZONTAL MOTOR FORWARD | |
| 16 | CPS27 (BU-GN) | 15 | DRIVER SEAT HEIGHT MOTOR DOWN | |
| 17 | CPS26 (YE-BU) | 14 | DRIVER SEAT HEIGHT MOTOR UP | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used |
