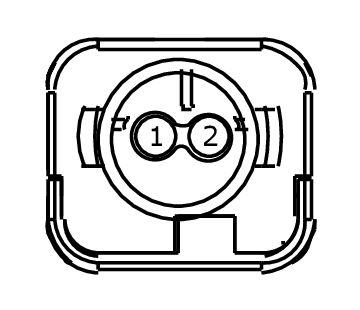

Connector End View (C3321) - SIDE AIR BAG MODULE, LEFT FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3321
Description
SIDE AIR BAG MODULE, LEFT FRONT
Color
Harness
14D232
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR106 (VT-GY) | 20 | CTRL MOD. - SIDE AIR BAG MODULE LEFT FRONT + | |
| 2 | RR106 (YE-OG) | 20 | CTRL MOD. - SIDE AIR BAG MODULE LEFT FRONT - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1228 |
Service Part Number: BU2Z-14S411-BMA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain |
