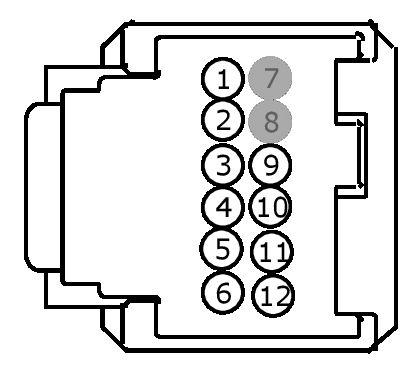

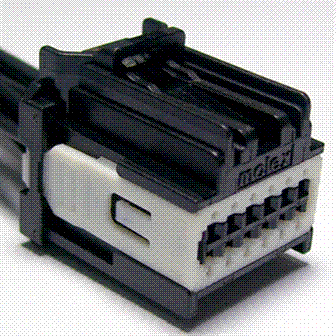

Connector End View (C3258) - INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3258
Description
INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY
Color
none
Harness
15K857
Base Part #
14489
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CLN17 (BN) | 22 | SWITCH - IP/SWITCH ILLUMINATION | |
| 2 | CHS76 (BN-VT) | 22 | SWITCH - HEATED STEERING WHEEL + | |
| 3 | CHS77 (GN-VT) | 22 | CTRL MOD. - HEATED STEERING WHEEL # INDICATOR HIGH | |
| 4 | CCA47 (BU-WH) | 22 | SWITCH - ELECTRONIC STABILITY CONTROL DISABLE | |
| 5 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | |
| 6 | CMP02 (GN-BU) | 22 | CTRL MOD. - PARKING AID # INDICATOR STATUS | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | CMP32 (GN) | 22 | SWITCH - PARKING AID | |
| 10 | CYD03 (BN-YE) | 22 | CTRL MOD. - DC/DC CONVERTER # DC ENABLE (DCE) | |
| 11 | LYA03 (YE-VT) | 22 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR + | |
| 12 | GD133 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1401 |
Service Part Number: EU2Z-14S411-SA Gauge: 20 Pin material: Tin Cavities: 12 Vehicle Uses Module - Climate Control Seat Module - Heated Seat (Rear) Module - Image Processing Module - Media Gateway Module - Power Steering Monitor - Video/DVD |
