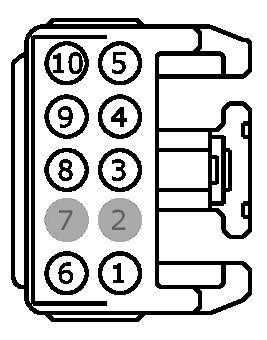

Connector End View (C3245) - FLOOR SHIFTER
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3245
Description
FLOOR SHIFTER
Color
GY
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC41 (WH-BN) | 22 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | |
| 2 | * | * | Not Used | |
| 3 | CET52 (GN) | 20 | SWITCH - TRANSMISSION PARK DETECT | |
| 4 | GD133 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 5 | CET44 (YE-BU) | 22 | OVERDRIVE CANCEL/GRADE ASSIST | |
| 6 | CET16 (WH-BU) | 20 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 7 | * | * | Not Used | |
| 8 | RET24 (BN-BU) | 22 | SIGNAL RETURN (SIGRTN) | without overdrive cancel/grade assist |
| 8 | GD133 (BK-GN) | 20 | GROUND - COWL SIDE/PILLAR A LEFT (OBSOLETE) | |
| 9 | CET61 (BN-VT) | 22 | UP SHIFT | without overdrive cancel/grade assist |
| 10 | CET62 (WH-GN) | 22 | DOWN SHIFT | without overdrive cancel/grade assist |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1037 |
Service Part Number: 1U2Z-14S411-BLB Gauge: 14 Pin material: Silver Cavities: 10 Vehicle Uses Inverter - DC to AC Module - Anti-theft Module - Heated Seat Module - Power Moonroof Radio - Amplifier Solenoid - Brake Shift Park Interlock Switch - Gear Shift Select/Neutral Safety Switch - Headlamp Switch - Heated Seat Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Overdrive Cancel Switch - Turn Signal Switch - Windshield Wiper / Washer |
