Connector End View (C3215) - LUMBAR MOTOR, DRIVER SEAT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3215
Description
LUMBAR MOTOR, DRIVER SEAT
Color
BK
Harness
14D232
Base Part #
14489
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS19 (GY-VT) | 18 | SWITCH OUT- DRIVER SEAT CONTROL | |
| 2 | CPS18 (BN-GN) | 18 | SWITCH IN - DRIVER SEAT CONTROL |

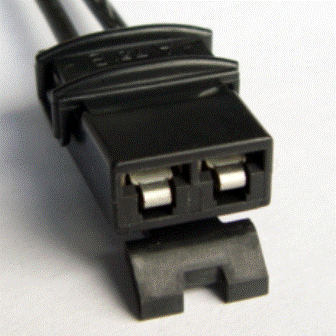

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-687 |
Service Part Number: 3U2Z-14S411-ZAA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Air Suspension Compressor Switch - Dimmer (Instrument Panel) |
