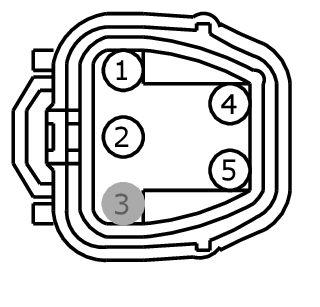

Connector End View (C3127) - FUEL PUMP (FP) ASSEMBLY
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3127
Description
FUEL PUMP (FP) ASSEMBLY
Color
GY
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RMC32 (GN-BU) | 20 | CTRL MOD. - SENSOR FUEL LEVEL | |
| 2 | VMC11 (YE-VT) | 20 | SENSOR - FUEL LEVEL (FLI) | |
| 3 | * | * | Not Used | |
| 4 | RE225 (BK-BU) | 14 | CTRL MOD. - FUEL PUMP # FUEL PUMP (FP) ASSEMBLY (FPRTN) | |
| 5 | VE225 (YE-OG) | 14 | CTRL MOD. - FUEL PUMP # FUEL PUMP (FP) ASSEMBLY (FPPWR) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-909 |
Service Part Number: 8U2Z-14S411-NA Gauge: 14 Pin material: Tin Cavities: 5 Vehicle Uses Control - Engine Air Shutoff Fuel Pump/Sending Unit Resistor - Blower Motor (Front) |
