Connector End View (C3052) - INLINE

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Inline C3052

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

MALE

Harness 14D233

FEMALE

Harness 14D230

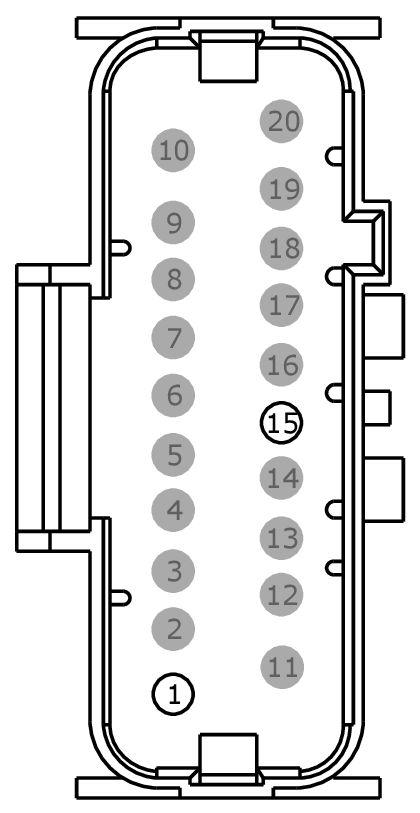

GFDW99969

Courtesy of FORD MOTOR COMPANY

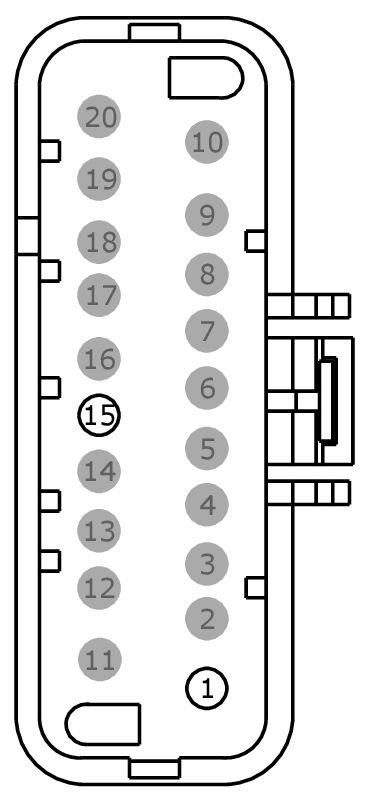

GFDW99970

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	RHS01 (GY-VT)	16	14D233
2	*	*
3	*	*
4	*	*
5	*	*
6	*	*
7	*	*
8	*	*
9	*	*
10	*	*
11	*	*
12	*	*
13	*	*
14	*	*
15	CHS01 (GY-VT)	16	14D233
16	*	*
17	*	*
18	*	*
19	*	*

Pin	Circuit	Gauge	Qualifier
1	GD903 (BK-WH)	16	14D230
2	*	*
3	*	*
4	*	*
5	*	*
6	*	*
7	*	*
8	*	*
9	*	*
10	*	*
11	*	*
12	*	*
13	*	*
14	*	*
15	CHS02 (YE-BU)	16	14D230
16	*	*
17	*	*
18	*	*
19	*	*
