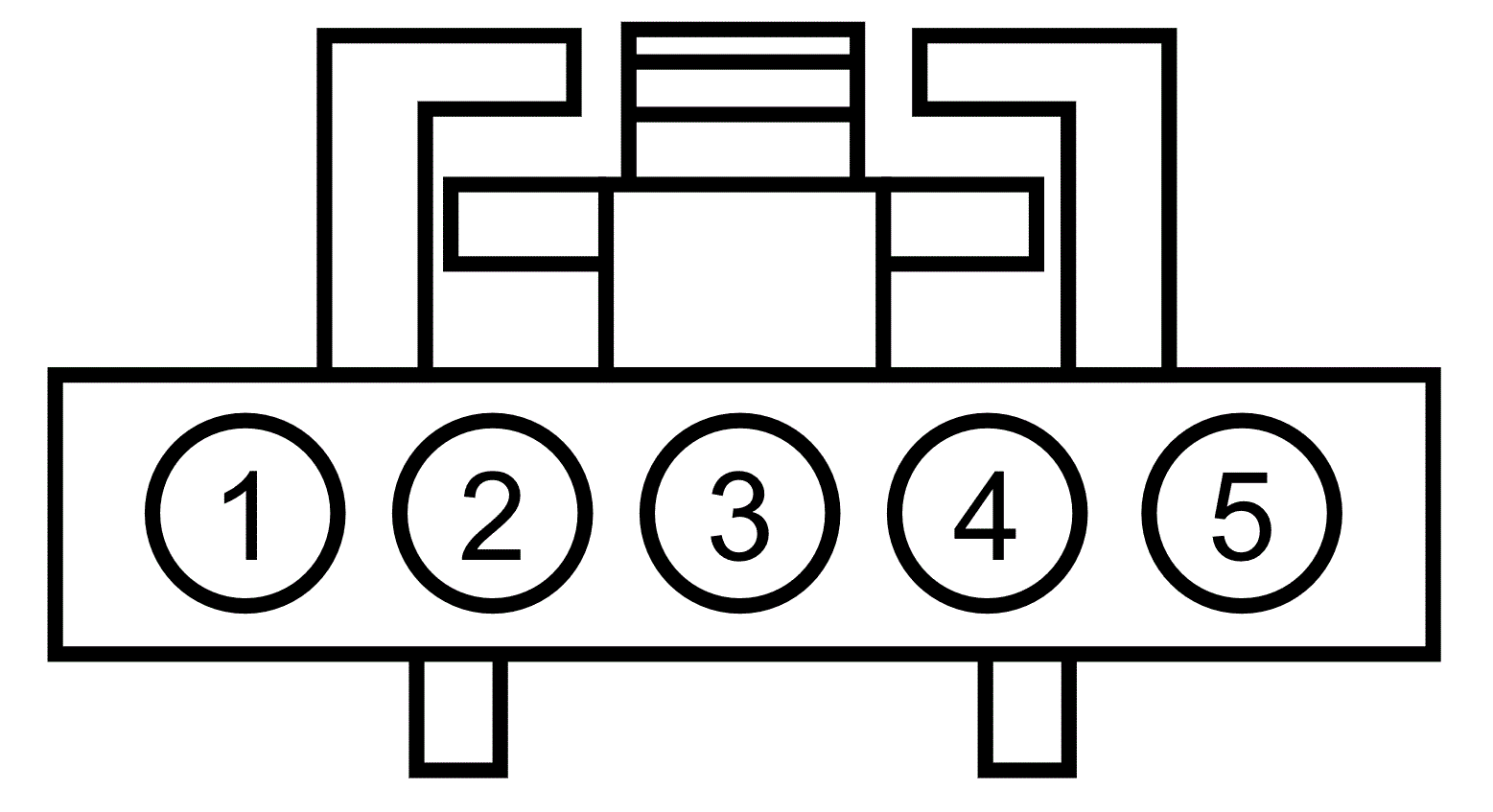

Connector End View (C2999) - STEERING WHEEL SWITCH, RH UPPER
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2999
Description
STEERING WHEEL SWITCH, RH UPPER
Color
Harness
14K147
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (WH) | * | NOT USED | |
| 2 | * (OG) | * | IP ILLUMINATION | |
| 3 | * (BK) | * | PWR GND | |
| 4 | * (GY) | * | DISPLAY SIGNAL | premium audio |
| 4 | * (GY) | * | AUDIO REMOTE - | base audio |
| 5 | * (LB) | * | DISPLAY/TRIP GND | premium audio |
| 5 | * (LB) | * | AUDIO REMOTE - | base audio |
