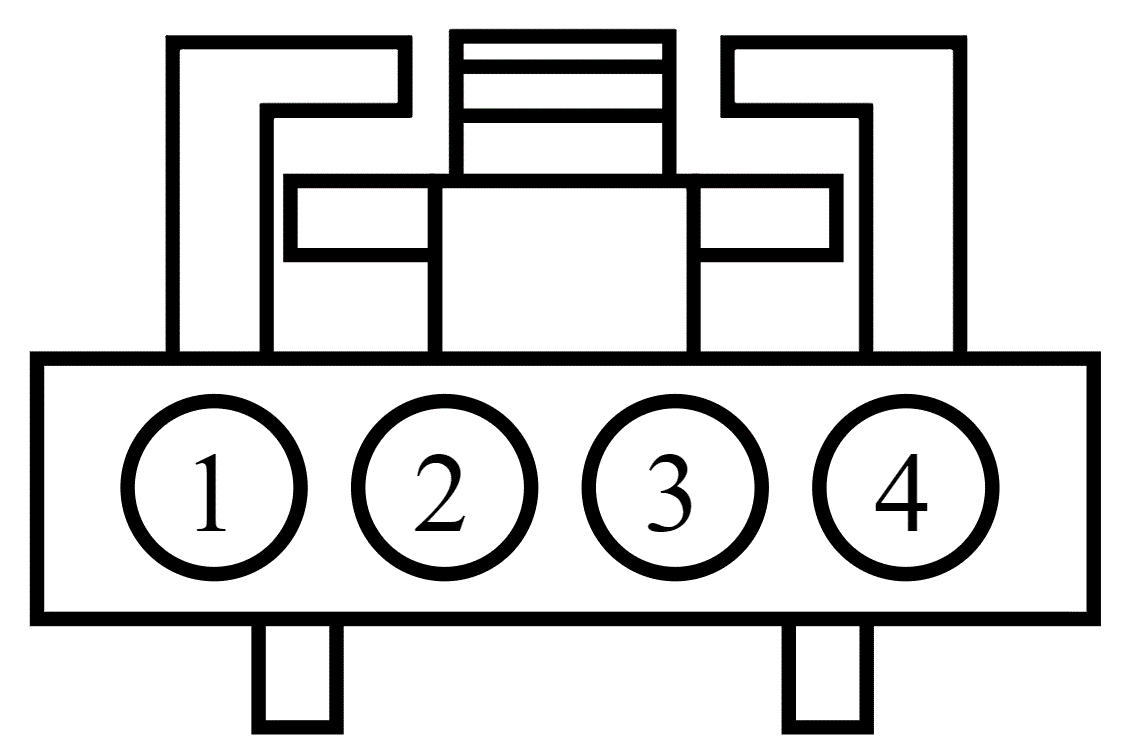

Connector End View (C2998) - STEERING WHEEL SWITCH, LH UPPER
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2998
Description
STEERING WHEEL SWITCH, LH UPPER
Color
Harness
14K147
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (OG) |
* |
IP ILLUMINATION |
| 2 |
* (YE) |
* |
TRIP SIGNAL |
| 3 |
* (LB) |
* |
DISPLAY/TRIP GND |
| 4 |
* (BK) |
* |
PWR GND |
