Connector End View (C2603C) - ELECTRIC BOOSTER HEATER
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2603C
Description
ELECTRIC BOOSTER HEATER
Color
none
Harness
14401
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP85 (YE) | 22 | FUSE - 85 OR CIRCUIT BREAKER | |
| 2 | CHP01 (BU) | 22 | CTRL MOD. - PTC HEATER # HEATER |

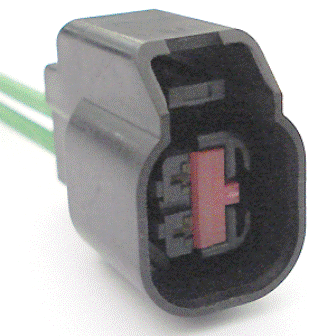

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-966 |
Service Part Number: 3U2Z-14S411-CNB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Lamp - CHMSL (Center High Mount Stop Lamp) Module - Warning Chime/ Beltminder Sensor - Brake Pedal Position Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Subwoofer Switch - Brake Deactivation Switch - Stop Lamp |
