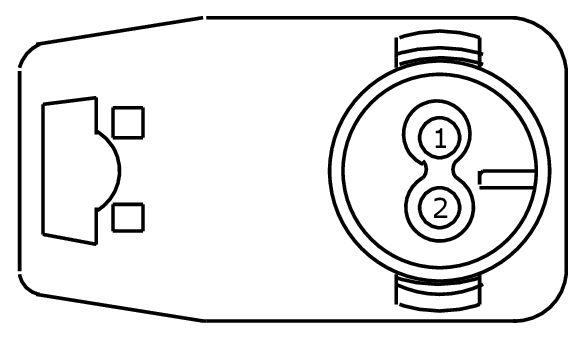

Connector End View (C2432) - DRIVER LOWER AIR BAG MODULE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2432
Description
DRIVER LOWER AIR BAG MODULE
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR139 (VT-WH) | 20 | CTRL MOD. - AIR BAG DRIVER KNEE + | |
| 2 | RR139 (YE) | 20 | CTRL MOD. - AIR BAG DRIVER KNEE - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1225 |
Service Part Number: BU2Z-14S411-BHA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger) |
