Connector End View (C2383D) - ACCESSORY PROTOCOL INTERFACE MODULE (APIM)
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

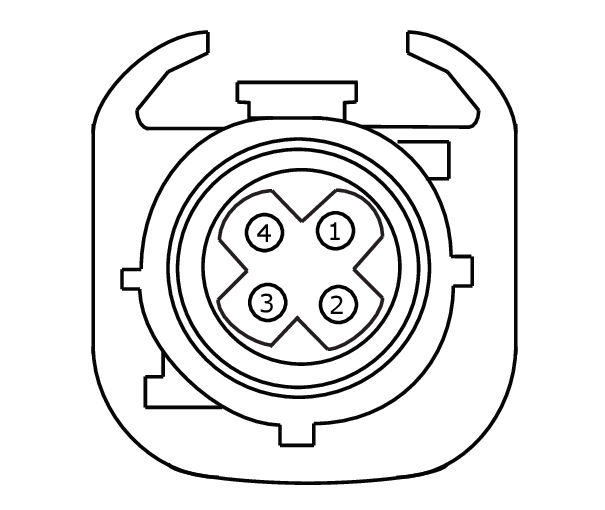

Connector: C2383D
Description
ACCESSORY PROTOCOL INTERFACE MODULE (APIM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (*) |
* |
COMMUNICATION + |
| 2 |
* (*) |
* |
POWER |
| 3 |
* (*) |
* |
COMMUNICATION - |
| 4 |
* (*) |
* |
GROUND |
