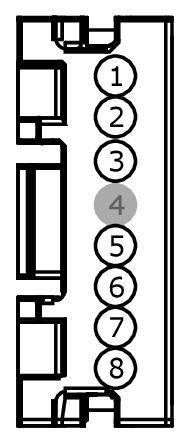

Connector End View (C2366) - STEERING WHEEL SWITCH LH
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2366
Description
STEERING WHEEL SWITCH LH
Color
Harness
14K147
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (GN) | * | IP ILLUMINATION GND (-) | |
| 2 | * (*) | * | 5 WAY - | |
| 3 | * (VT) | * | CRUISE GND | |
| 4 | * | * | Not Used | |
| 5 | * (*) | * | 5 WAY + | |
| 6 | * (GY) | * | CRUISE CONTROL 1 (CC1) | |
| 7 | * (BN) | * | CRUISE CONTROL 2 (CC2) | |
| 8 | * (BK) | * | IP ILLUMINATION PWR (+) |
