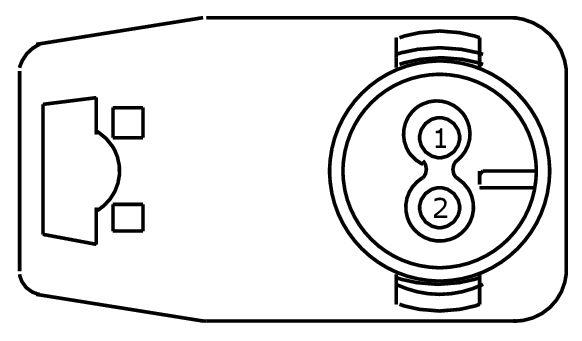

Connector End View (C2351) - PASSENGER AIR BAG CANISTER VENT

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2351

Description

PASSENGER AIR BAG CANISTER VENT

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR105 (GY-YE)	20	CTRL MOD. - PASSENGER AIR BAG CANISTER VENT, RETURN
2	CR105 (GN-BU)	20	CTRL MOD. - PASSENGER AIR BAG CANISTER VENT

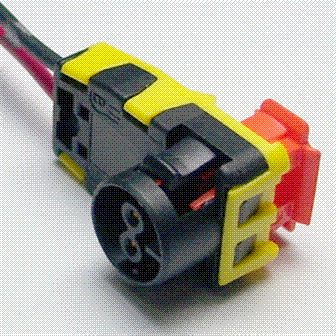

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1225

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BHA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Airbag - Side Curtain

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
