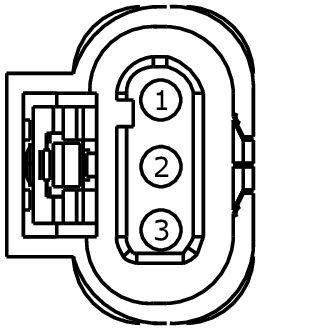

Connector End View (C1992) - COIL ON PLUG (COP) 2

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1992

Description

COIL ON PLUG (COP) 2

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE304 (YE-BU)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D)
2	GD145 (BK-GN)	16	GROUND - PILLAR B RIGHT
3	CBB50 (GN)	16	FUSE OUTPUT OR CIRCUIT BREAKER

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1287

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-YA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Coil - Ignition

Sensor - Front Park Aid (FPA)

Sensor - Reverse Park Aide (RPA)
