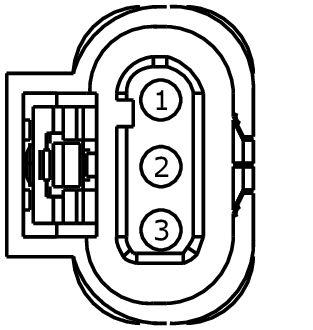

Connector End View (C1991) - COIL ON PLUG (COP) 1
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1991
Description
COIL ON PLUG (COP) 1
Color
BK
Harness
12A690
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE303 (WH-VT) | 20 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) | |
| 2 | GD145 (BK-GN) | 16 | GROUND - PILLAR B RIGHT | |
| 3 | CBB50 (GN) | 16 | FUSE OUTPUT OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1287 |
Service Part Number: CU2Z-14S411-YA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) |
