Connector End View (C1921) - TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1921
Description
TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR
Color
BK
Harness
12A690
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE805 (GN-BN) | 20 | SENSOR - TURBOCHARGER BOOST PRESSURE (TCBP) | |
| 2 | RE804 (GN-BU) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 3 | LE329 (BU) | 20 | CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) |
| Available Pigtail Kits | |

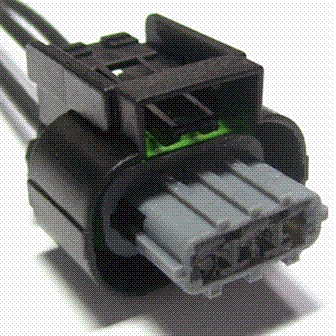

| Pigtail Kit Part Number WPT-1068 |
Service Part Number: AU2Z-14S411-JA Gauge: 14 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Cam Shaft Position Sensor - Manifold Absolute Pressure (MAP) |

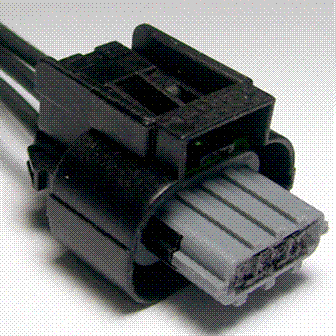

| Pigtail Kit Part Number WPT-1369 |
Service Part Number: AU2Z-14S411-JB Gauge: 16 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Cam Shaft Position Sensor - Manifold Absolute Pressure (MAP) Sensor - Turbo Intake Pressure/Temperature |
