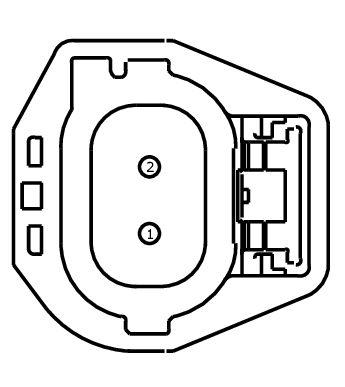

Connector End View (C1914) - INTERCOOLER FAN
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1914
Description
INTERCOOLER FAN
Color
none
Harness
14K733
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE626 (BU-GN) | 14 | RELAY - INTERCOOLER FAN | |
| 2 | GD130 (BK-YE) | 14 | GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT |

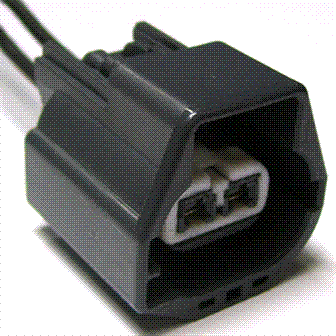

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1336 |
Service Part Number: DU2Z-14S411-KA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear |
| Pigtail Kit Part Number WPT-1496 |
Service Part Number: DU2Z-14S411-KB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Glow Plug Motor - Fuel Filler Door Motor - Power Slider Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
