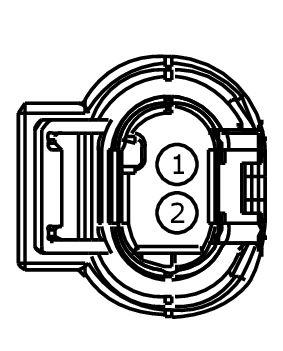

Connector End View (C1670) - VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1670
Description
VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID
Color
BK
Harness
12A690
Base Part #
14A464
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CBB16 (VT-GY) |
20 |
FUSE OUTPUT OR CIRCUIT BREAKER |
| 2 |
CE501 (GY) |
20 |
VCT11 |
