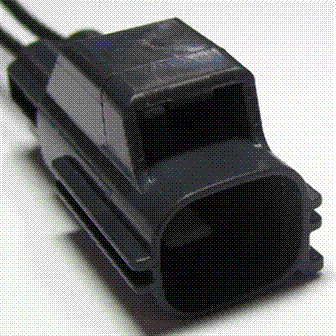

Connector End View (C1614) - KNOCK SENSOR 1 (KS1)

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1614

Description

KNOCK SENSOR 1 (KS1)

Color

Harness

9H589/12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE323 (WH-BN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE [KS1-]
2	VE801 (VT-OG)	20	SENSOR - KNOCK 1ST OR UNIQUE [KS1+]

Available Pigtail Kits

Pigtail Kit Part Number

WPT-987

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CZAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Cylinder Head Temperature

Sensor - Knock
