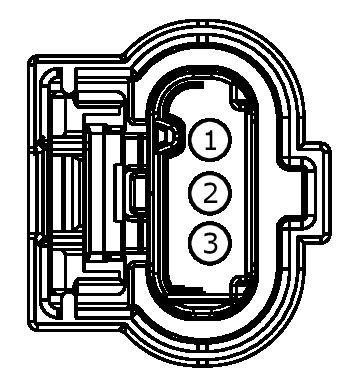

Connector End View (C1540) - COIL ON PLUG (COP) 3
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1540
Description
COIL ON PLUG (COP) 3
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE305 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) | |
| 2 | GD108 (BK-VT) | 16 | GROUND - CHASSIS / BATTERY | |
| 3 | CBK04 (VT) | 16 | FUSE OUTPUT OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1492 |
Service Part Number: HU2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Monitor - Crankcase Ventilation Motor - Intercooler Pump Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Delta Pressure Feedback EGR Sensor - Exhaust Gas Pressure Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Sensor - Oil Pressure |
