Connector End View (C923) - INTERIOR LAMPS, CENTER
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C923
Description
INTERIOR LAMPS, CENTER
Color
none
Harness
14335
Base Part #
14489
Service Pigtail
See Below

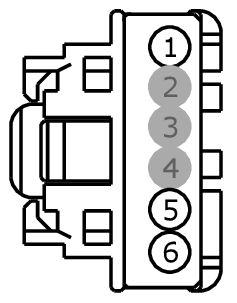

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP60 (YE-VT) | 20 | FUSE - 60 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | GD138 (BK-WH) | 20 | GROUND - COWL SIDE/PILLAR A RIGHT | |
| 6 | VLN40 (YE-BU) | 20 | LAMP - DOME FRONT # DIM REAR |

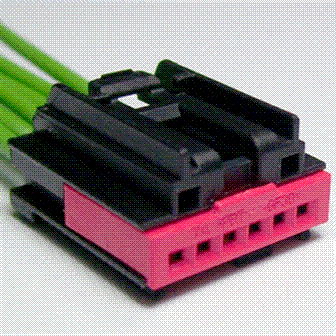

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1249 |
Service Part Number: 3U2Z-14S411-BYAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control |
