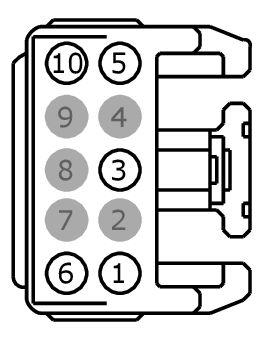

Connector End View (C921) - ROOF OPENING PANEL MOTOR ASSEMBLIES
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C921
Description
ROOF OPENING PANEL MOTOR ASSEMBLIES
Color
GY
Harness
14335
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD138 (BK-WH) | 14 | GROUND - COWL SIDE/PILLAR A RIGHT | |
| 2 | * | * | Not Used | |
| 3 | CPR22 (WH-BN) | 22 | RELAY - MOON/SUN ROOF | |
| 4 | * | * | Not Used | |
| 5 | CPR40 (YE-OG) | 22 | SWITCH - MOON/SUN ROOF OPEN | |
| 6 | CBP80 (OG-BK) | 14 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | CPR31 (VT-BN) | 22 | SWITCH - MOON/SUN ROOF CLOSE |

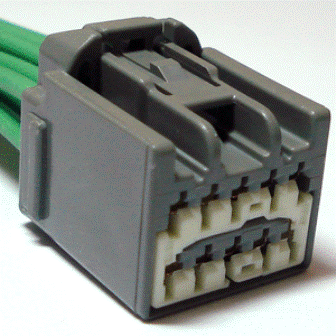

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1037 |
Service Part Number: 1U2Z-14S411-BLB Gauge: 14 Pin material: Silver Cavities: 10 Vehicle Uses Inverter - DC to AC Module - Anti-theft Module - Heated Seat Module - Power Moonroof Radio - Amplifier Solenoid - Brake Shift Park Interlock Switch - Gear Shift Select/Neutral Safety Switch - Headlamp Switch - Heated Seat Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Overdrive Cancel Switch - Turn Signal Switch - Windshield Wiper / Washer |
